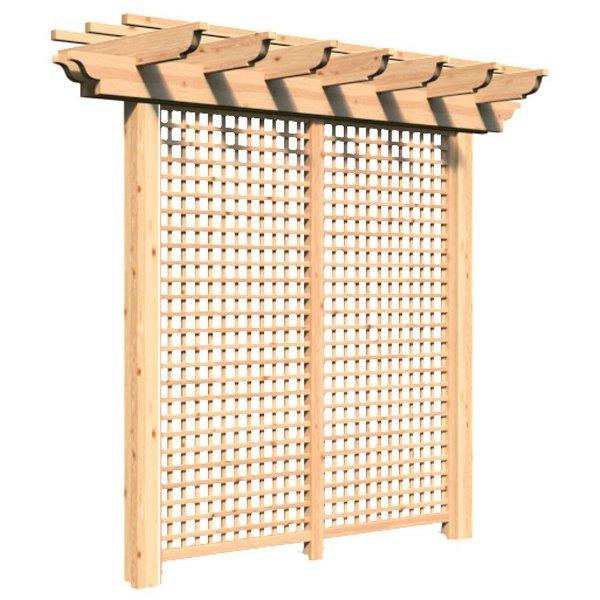

This Monterrey Pergola features rot and decay resistant Western Red Cedar. Its included options are In-Ground Mount, Decorative End Cut, 24" Top Runner Spacing On Center, Standard Braces, and a Lattice Wall Privacy Panel. Available in 10 different sizes, it is likely to fit the needs of any customer.

• Decorative End Cut
• 12" On Center Top Runner Spacing
• Standard Braces
• Made in the U.S.A.
• Beams: 2" x 8" Double Beams
• Main Runners: 2" x 6" Runners - approx 16" On Center
• Top Runners: 2" x 2" Runners - 12" On Center

Material: Western Red Cedar
Hardware: Galvanized Bolts, Washers, and Nuts
Use: Outdoor

Dimensions:
3' x 10' Pergola: Outside of Posts: 3' x 10', Inside of Posts: 3' x 110", Post Dimensions: 5" x 5" - 10' Tall
4' x 10' Pergola: Outside of Posts: 4' x 10', Inside of Posts: 4' x 110", Post Dimensions: 5" x 5" - 10' Tall
3' x 12' Pergola: Outside of Posts: 3' x 12', Inside of Posts: 3' x 134", Post Dimensions: 5" x 5" - 10' Tall
4' x 12' Pergola: Outside of Posts: 4' x 12', Inside of Posts: 4' x 134", Post Dimensions: 5" x 5" - 10' Tall
3' x 14' Pergola: Outside of Posts: 3' x 14', Inside of Posts: 3' x 158", Post Dimensions: 5" x 5" - 10' Tall
3' x 16' Pergola: Outside of Posts: 3' x 16', Inside of Posts: 3' x 182", Post Dimensions: 5" x 5" - 10' Tall
4' x 14' Pergola: Outside of Posts: 4' x 14', Inside of Posts: 4' x 158", Post Dimensions: 5" x 5" - 10' Tall
4' x 16' Pergola: Outside of Posts: 4' x 16', Inside of Posts: 4' x 182", Post Dimensions: 5" x 5" - 10' Tall
3' x 8' Pergola: Outside of Posts: 3' x 8', Inside of Posts: 3' x 86", PostDimensions: 5" x 5" - 10' Tall
4' x 8' Pergola: Outside of Posts: 4' x 8', Inside of Posts: 4' x 86", Post Dimensions: 5" x 5" - 10' Tall

Weight:
3' x 10' Pergola: Weight: 560 lbs
4' x 10' Pergola: Weight: 585 lbs
3' x 12' Pergola: Weight: 612 lbs
4' x 12' Pergola: Weight: 637 lbs
3' x 14' Pergola: Weight: 664 lbs
3' x 16' Pergola: Weight: 716 lbs
4' x 14' Pergola: Weight: 689 lbs
4' x 16' Pergola: Weight: 741 lbs
3' x 8' Pergola: Weight: 508 lbs
4' x 8' Pergola: Weight: 533 lbs

SKU #: HBWRCMPPL3x10CVD, HBWRCMPPL4x10CVD, HBWRCMPPL3x12CVD, HBWRCMPPL4x12CVD, HBWRCMPPL3x14CVD, HBWRCMPPL3x16CVD, HBWRCMPPL4x14CVD, HBWRCMPPL4x16CVD, HBWRCMPPL3x8CVD, HBWRCMPPL4x8CVD

Assembly:
Shipping Method: via LTL Freight
Special Delivery: Standard Curbside Delivery
Returns: Due to large size, this item is final sale and non-returnable, with the exception of items with defects.

Warranty: Creekvine Design products include a one year manufacturer limited warranty that protects against any defects in the manufacturing and workmanship of the product's components.

Colors:
